Deploying high-density wireless infrastructure across complex enterprise environments requires rigorous RF physical layer modeling and spectrum analysis. Modern enterprise WLAN management relies heavily on standardized wireless protocols set forth by the IEEE 802.11 Working Group to ensure high throughput, seamless roaming, and minimal co-channel interference across mission-critical enterprise networks.

1. Site24x7

Site24x7 is a cloud-native infrastructure monitoring and network operational intelligence platform that correlates wireless signal metrics directly with underlying application and server performance data. The platform continuously monitors bandwidth consumption, latency, and RSSI degradation across multi-vendor wireless environments using lightweight distributed collectors.

• Deployment & Monitoring Architecture: SaaS-delivered platform leveraging secure cloud collectors to process SNMP polling data, Flow telemetry (NetFlow, sFlow, J-Flow), and real-time WLAN metrics.
• AIOps & Root-Cause Analytics: Features built-in anomaly detection models that correlate RF signal drop-offs with switch port congestion and upstream infrastructure latency.
• Extensible Integration APIs: Provides RESTful APIs and pre-built Webhook integrations with ITSM tools like ServiceNow and PagerDuty for automated RF degradation ticketing.

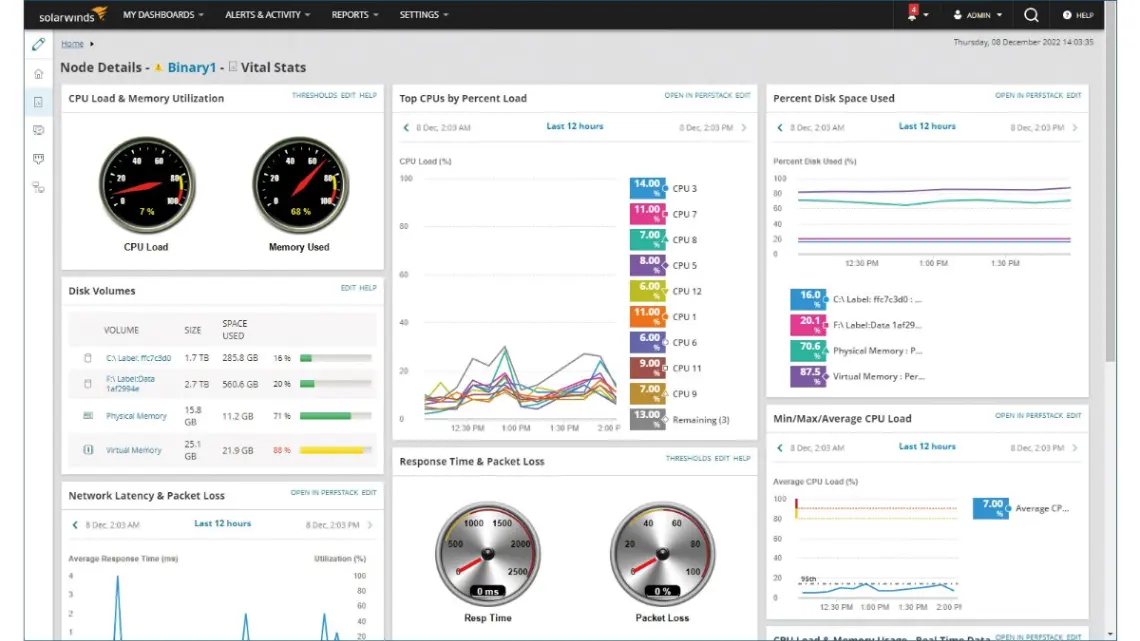

2. SolarWinds NPM

SolarWinds Network Performance Monitor (NPM) features automated Wi-Fi heat mapping built directly into its scalable enterprise network management architecture. By polling wireless controllers and access points, SolarWinds NPM dynamically calculates signal propagation and tracks client physical locations relative to AP coordinates in real time.

• Dynamic AP Polling & Controller Integration: Native API and SNMP integration with Cisco, Aruba, and Ruckus Wireless LAN Controllers (WLCs) for automated dynamic heat map updates.
• Precision Client Tracking Engine: Leverages triangulation algorithms based on signal strength metrics from adjacent APs to locate connected client devices within feet.
• Enterprise Deployment Model: On-premises or hybrid private cloud deployment utilizing an SQL-backed server architecture capable of polling tens of thousands of interfaces.

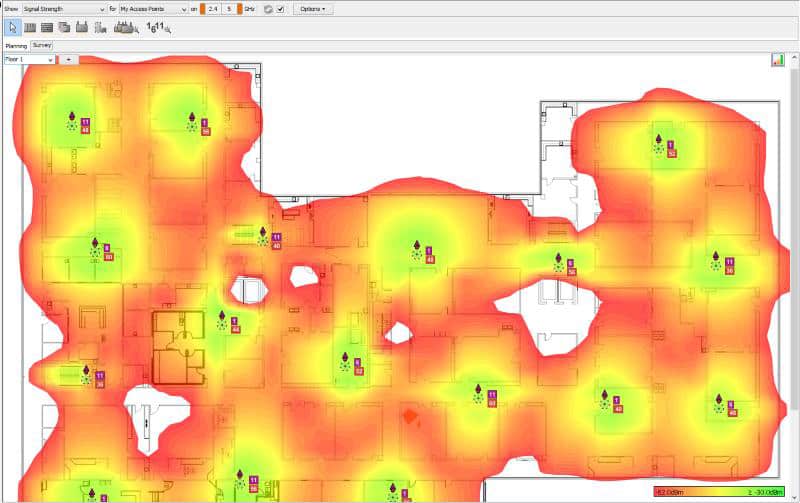

3. Ekahau WiFi Heatmaps

Ekahau is an industry-standard specialized hardware and software ecosystem designed for high-precision RF site surveys, 3D predictive network design, and live Wi-Fi spectrum analysis. Its specialized diagnostic engine models physical obstruction attenuation across 802.11a/b/g/n/ac/ax bands to eliminate wireless dead zones prior to AP installation.

• High-Precision Hardware Integration: Interfaces directly with the Ekahau Sidekick custom spectrum analyzer for frame-level packet capture and Wi-Fi 6/6E signal measurement.
• 3D Ray-Tracing Simulation Engine: Advanced predictive modeling algorithms account for wall material absorption (concrete, drywall, glass) and multi-floor signal bleed.
• Deployment & Mobile Ecosystem: On-premises desktop software paired with iOS/Android mobile apps for tablet-assisted physical walkthrough surveys and cloud synchronization.

4. VisiWave Site Survey

VisiWave Site Survey is a dedicated RF survey tool built for massive spatial mapping requirements across expansive indoor structures and outdoor campus environments. The platform captures active, passive, and continuous Wi-Fi signal metrics while offering 3D surface visualizers and Google Earth geographic overlays.

• GPS & Spatial Tracking Integration: Native integration with NMEA-compliant GPS receivers to map wireless coverage across broad outdoor environments automatically.
• 3D Surface & Contour Rendering: Constructs volumetric RF heat maps displaying signal propagation across x, y, and z axes to analyze multi-level physical interference.
• Data Collection Methodologies: Supports One-Click point capture, Continuous walk surveys, and GPS-assisted spatial logging for 802.11a/b/g/n/ac/ax networks.

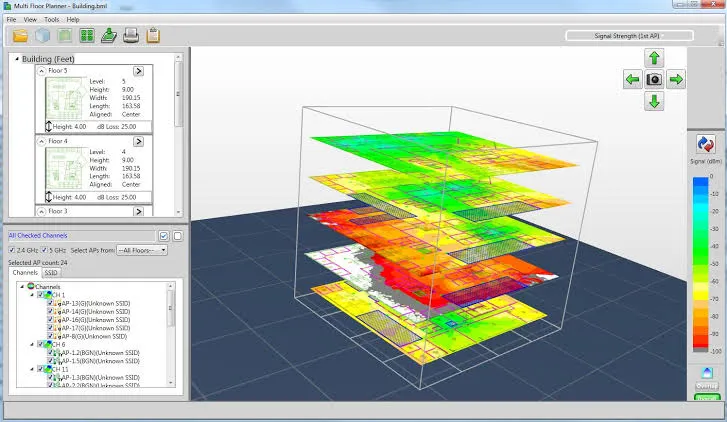

5. AirMagnet Survey Pro

AirMagnet Survey Pro by NetAlly is an enterprise-grade wireless site survey software suite engineered for modeling, auditing, and troubleshooting Wi-Fi 6 and 6E WLAN deployments. It allows network engineers to simulate AP power adjustments, channel configurations, and user density capacities before committing to physical hardware installations.

• Wi-Fi 6/6E Capacity Modeling: Advanced predictive simulation engines that evaluate channel overlap, PHY data rates, packet loss, and throughput under heavy user loads.
• Simultaneous Active & Passive Scanning: Dual-radio survey engine captures RF signal strength (RSSI), noise floor, and real PHY layer packet metrics in a single survey pass.
• On-Premises Windows Architecture: High-performance desktop application optimized for enterprise laptops with custom air-pcap driver support and CAD floor plan import.

6. Acrylic Wi-Fi

Acrylic Wi-Fi is an advanced RF analysis and survey tool set tailored for Windows environments, supporting low-cost passive and active heat map generation. It offers granular channel overlap inspection, latency mapping, and automatic AP placement recommendations for small to enterprise-scale facilities.

• Active & Passive Wi-Fi Sniffing: Operates in monitor mode using compatible Wi-Fi cards to capture raw 802.11 frames, beacon frames, and co-channel interference metrics.
• 3D Material Attenuation Editor: Built-in CAD layout tools allow network designers to draw custom wall materials and calculate exact dBm signal loss values.
• Multi-Format Telemetry Export: Generates automated diagnostic reports with raw data export capabilities to KMZ, CSV, DOCX, and PDF formats.

7. NetSpot

NetSpot is a versatile, cross-platform wireless site survey and analyzer tool designed for rapid WLAN troubleshooting, coverage verification, and RF noise visualization. It combines a user-friendly UI with deep survey capabilities, supporting both Inspector mode for real-time channel analysis and Survey mode for spatial heat mapping.

• Cross-Platform Native Deployment: Fully native desktop applications built specifically for macOS and Microsoft Windows operating systems.
• Dual Survey Modes: Offers real-time Wi-Fi channel inspection alongside interactive point-and-click spatial mapping with customizable color-coded RSSI thresholds.
• Noise Floor & SNR Heatmaps: Visualizes Signal-to-Noise Ratios and ambient RF noise levels to pinpoint non-802.11 interference sources affecting wireless throughput.

Frequently Asked Questions

What is the primary architectural difference between active and passive WiFi heat map surveys?
A passive survey listens to all 802.11 beacon frames and probe responses broadcast across channels to measure RSSI, noise, and interference without connecting to a network. An active survey connects a wireless client to a specific Access Point to transmit iPerf or ICMP packets, measuring actual physical layer throughput, packet loss, round-trip latency, and roaming behaviors.

How do 6 GHz spectrum requirements affect enterprise WiFi heat mapping software choice?
The introduction of Wi-Fi 6E and Wi-Fi 7 (6 GHz band) requires heat mapping software capable of parsing wider channel widths (up to 320 MHz) and higher wall attenuation factors inherent to higher frequencies. Enterprise platforms must support updated spectrum analyzers and custom hardware (such as dedicated survey sidekicks) that can sweep the 5.925 GHz to 7.125 GHz range.

Can cloud-managed network monitoring platforms replace dedicated handheld site survey tools?
Cloud monitoring platforms (e.g., Site24x7) provide continuous real-time operational metrics, SNMP telemetry, and client tracking across established networks. However, dedicated handheld or desktop survey tools (e.g., Ekahau, AirMagnet) remain essential during pre-deployment phases for physical RF propagation modeling, wall attenuation testing, and off-network spectrum analysis.
